Catalog Matrix

Engineering Product Center

Compare AGV core component families, shortlist products, and move technical context into RFQ.

Start RFQ Request Technical Pack

Catalog proof panel Drive / Steering / Control / Safety Component coverage for AGV and AMR builders

Engineering Product Center product architecture

Families13

Products26

DocumentsCAD / Manual / Drawing

ActionShortlist to RFQ

Product Families

ZC-WM

ZICORE Wheel Modules

Drive wheel, steering wheel, and differential wheel modules built for AGV and AMR motion platforms.

HW - Horizontal Planetary Drive Wheel VW - Vertical Steering Drive Unit DW - Differential Drive Wheel DW-SET - Differential Wheel Set

ZC-SD

ZICORE Servo Drivers

Low-voltage servo driver families for traction, steering, lift, and multi-axis AGV control.

ACH - ACH Series Servo Driver ACL - ACL Series Servo Driver DCH - DCH Series Servo Driver DCM - DCM Series Servo Driver

ZC-LM

ZICORE Lifting Modules

Lift modules for docking, transfer, top-lift AMR, and high-capacity handoff platforms.

ZC-LM - Lifting Module Series

ZC-LM Lifting Modules & Accessories

ZICORE Lifting Modules ZC-LM - Lifting Module Series

ZC-DSJG300-60-400 Lifting Module

Compact top-lift AMR

Slug: zc-dsjg300-60-400-lifting-module Load Class: 300 kg class Stroke: 60 mm Use Case: Compact top-lift AMR

View Specs

ACL Servo Motors & Drivers

ZICORE Servo Drivers ACL - ACL Series Servo Driver

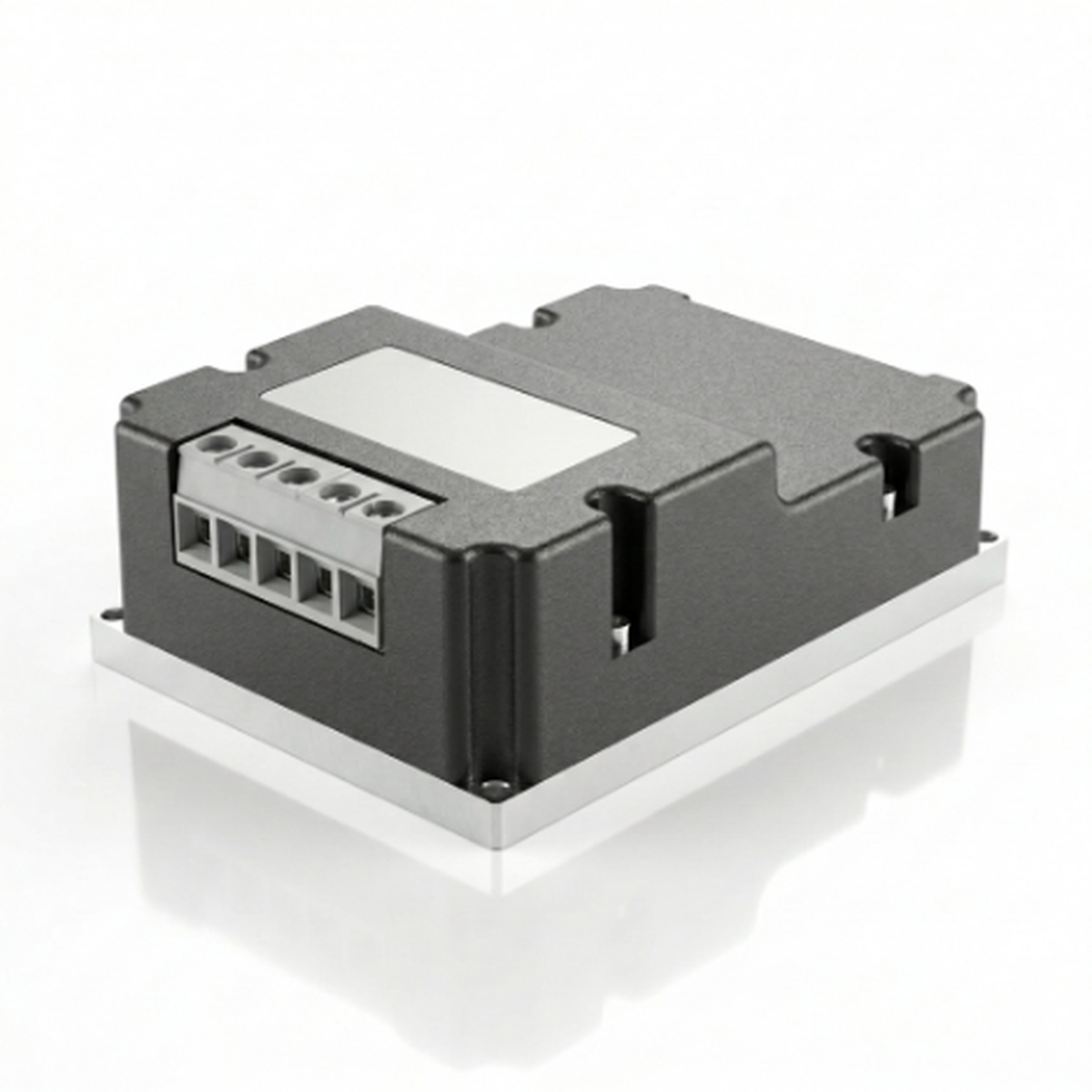

ACL Series Servo Driver

Compact AC servo driver family

Slug: acl-series-servo-driver Role: Compact AC servo driver family Voltage Platform: Low-voltage AC motion systems; project voltage to be confirmed Target Axes: Compact traction and steering axis

View Specs

ACH Servo Motors & Drivers

ZICORE Servo Drivers ACH - ACH Series Servo Driver

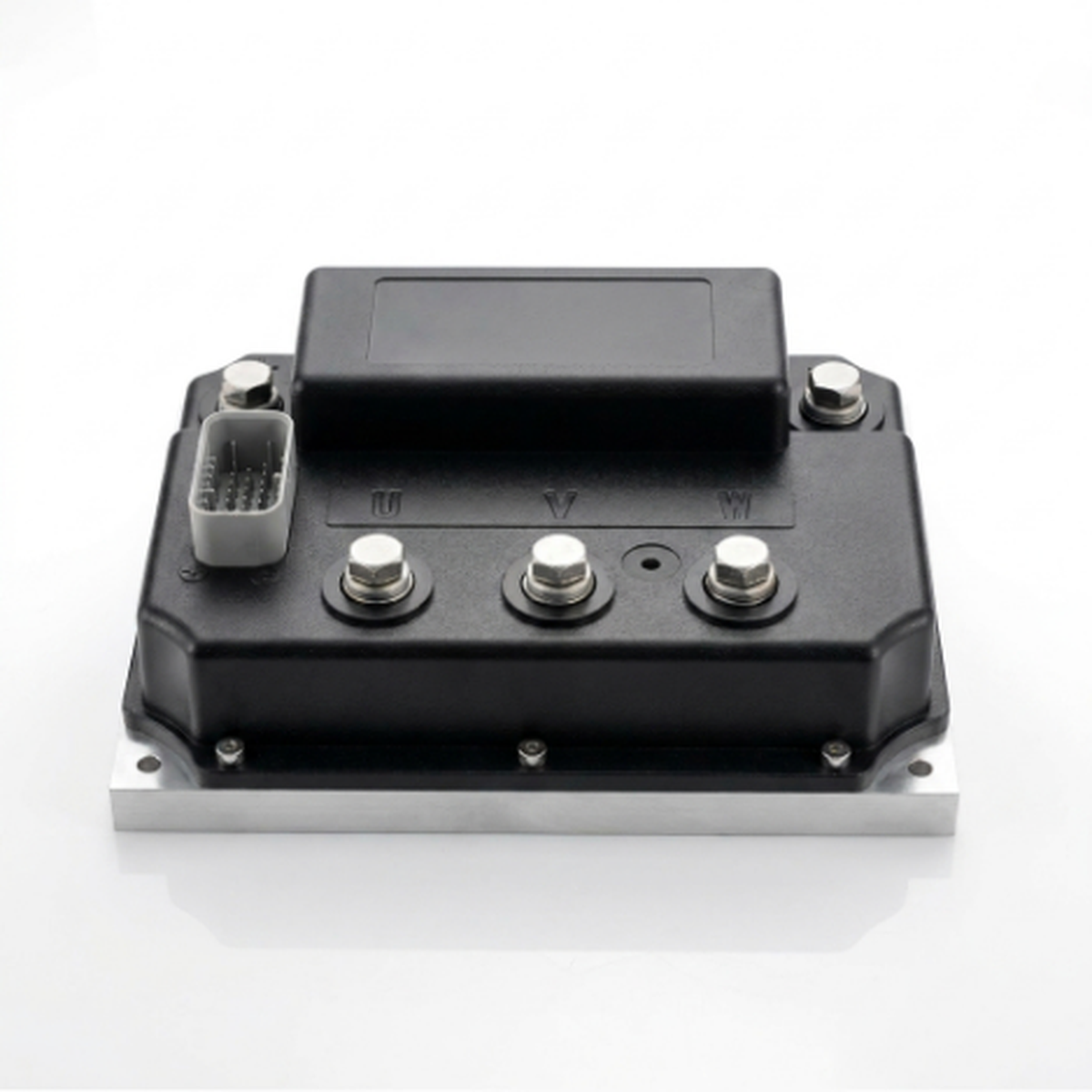

ACH Series Servo Driver

High-current AC servo driver family

Slug: ach-series-servo-driver Role: High-current AC servo driver family Voltage Platform: Low-voltage AC motion systems; project voltage to be confirmed Target Axes: Traction axis, steering axis, lift axis

View Specs

HW Drive Wheel Systems

ZICORE Wheel Modules HW - Horizontal Planetary Drive Wheel

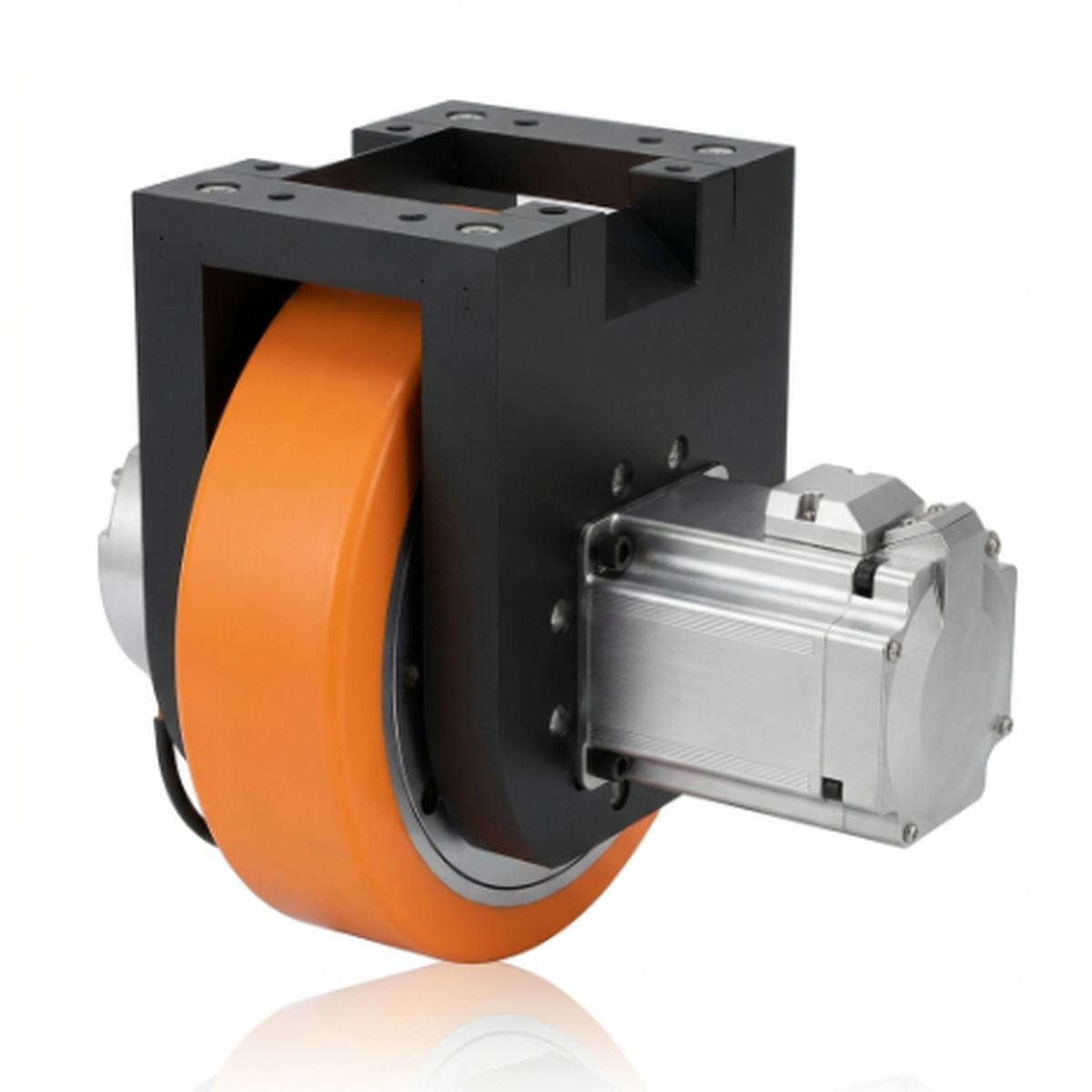

ZC-220P750SP-40-48H

Horizontal planetary drive wheel module for compact AGV and AMR chassis.

Slug: zc-220p750sp-40-48h Wheel Diameter: 22 mm Motor Power: 750 W Rated Voltage: 48 V

View Specs

HW Drive Wheel Systems

ZICORE Wheel Modules HW - Horizontal Planetary Drive Wheel

ZC-198P3000SP-32-48HS

Horizontal planetary drive wheel module for compact AGV and AMR chassis.

Slug: zc-198p3000sp-32-48hs Wheel Diameter: 198 mm Motor Power: 3000 W Rated Voltage: 48 V

View Specs

HW Drive Wheel Systems

ZICORE Wheel Modules HW - Horizontal Planetary Drive Wheel

ZC-198P3000SP-32-48H

Horizontal planetary drive wheel module for compact AGV and AMR chassis.

Slug: zc-198p3000sp-32-48h Wheel Diameter: 198 mm Motor Power: 3000 W Rated Voltage: 48 V

View Specs

HW Drive Wheel Systems

ZICORE Wheel Modules HW - Horizontal Planetary Drive Wheel

ZC-167P750SP-2148HS

Horizontal planetary drive wheel module for compact AGV and AMR chassis.

Slug: zc-167p750sp-2148hs Wheel Diameter: 167 mm Motor Power: 750 W Rated Voltage: Project confirmation required V

View Specs

HW Drive Wheel Systems

ZICORE Wheel Modules HW - Horizontal Planetary Drive Wheel

ZC-167P750SP-21-48H

Horizontal planetary drive wheel module for compact AGV and AMR chassis.

Slug: zc-167p750sp-21-48h Wheel Diameter: 167 mm Motor Power: 750 W Rated Voltage: 48 V

View Specs

HW Drive Wheel Systems

ZICORE Wheel Modules HW - Horizontal Planetary Drive Wheel

ZC-150P1000SP-21-48HS

Horizontal planetary drive wheel module for compact AGV and AMR chassis.

Slug: zc-150p1000sp-21-48hs Wheel Diameter: 15 mm Motor Power: 1000 W Rated Voltage: 48 V

View Specs

DW Drive Wheel Systems

ZICORE Wheel Modules DW - Differential Drive Wheel

ZC-120P200SP-12-48D

Differential drive wheel for two-wheel AGV and compact mobile base layouts.

Slug: zc-120p200sp-12-48d Wheel Diameter: 12 mm Motor Power: 200 W Rated Voltage: 48 V

View Specs

DW Drive Wheel Systems

ZICORE Wheel Modules DW - Differential Drive Wheel

ZC-120P400SP-20-48D

Differential drive wheel for two-wheel AGV and compact mobile base layouts.

Slug: zc-120p400sp-20-48d Wheel Diameter: 12 mm Motor Power: 400 W Rated Voltage: 48 V

View Specs

DW Drive Wheel Systems

ZICORE Wheel Modules DW - Differential Drive Wheel

ZC-150P200SP-16-48D

Differential drive wheel for two-wheel AGV and compact mobile base layouts.

Slug: zc-150p200sp-16-48d Wheel Diameter: 15 mm Motor Power: 200 W Rated Voltage: 48 V

View Specs
